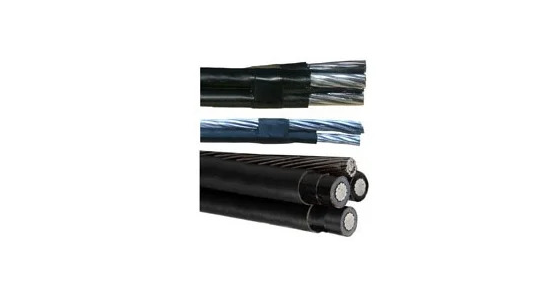

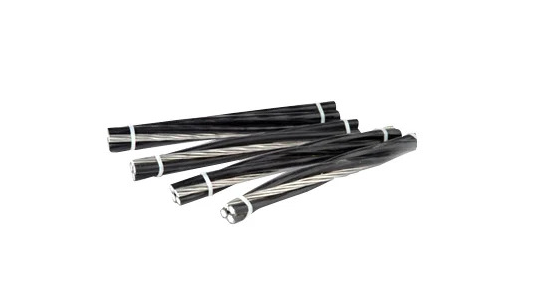

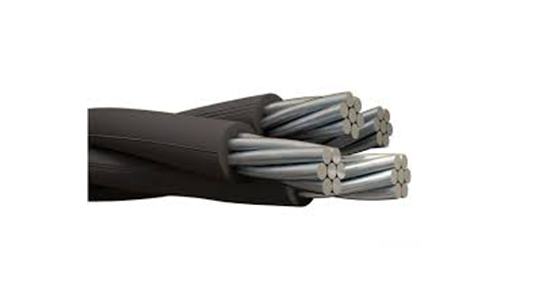

Lv Aerial Bunch Cables

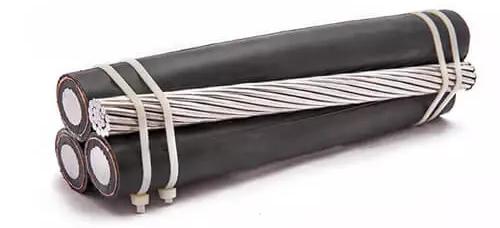

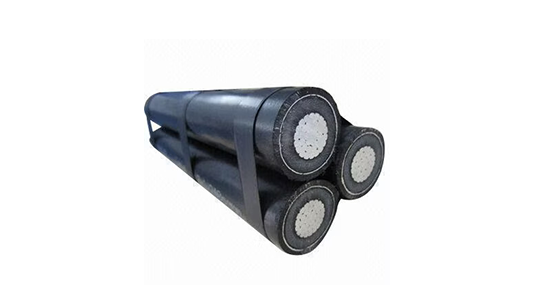

HD AL / AL Alloy / Cu, XLPE / PVC / PE Insulated, Messenger (Insulated/Bare) specially formulated for exposure to sunlight and Outdoor Application, MV Cables XLPE Insulated & Screened, Cores are PVC Sheathed.

Wide range of high-quality electrical building wires manufactured, designed and tested

download catalogue
Lv Aerial Bunch Cables Catelogue
Applications

Typically used in over-head power transmission & distribution and in temporary installations

Residential Buildings
Commercial buildings
Hospitals
Malls
Types & Sizes
  • Aluminium Circular Phase Conductors with messenger upto 120 mm.sq.
Specification

IS: 14255, IS: 398, IEC 228, BS: 60502, HD: 626, NFC: 33-209

Key Features
  • High mechanical strength.
  • Excellent electrical properties.
Product Range

Fire survival cables improves safety, reduces fire damages to buildings or equipments and provides extra time to escape during fire.

Messenger

Aluminium Alloy or Galavanized Steel Messenger Conductor (insulated / uninsulated)

Insulation

PE, XLPE, HDPE

Technical Specification for 1.1 kV AB Cable for Bare Messenger
Wire Diameter Thickness Of Max Dcresistance Of Min Breakling Approax Current Carrying
No. Of Strands (mm) Insulation (mm) 20^{O} C(Ohms/Km) Load Of Overall Approx Capacity
AB Cable Description Phase Street Light Messenger Phase Street Light Messenger Phase Street Light Messenger Phase Street Light Messenger "MESSENGE R (KN)" "DIAMETER (mm)" "WEIGHT (kg/km)" "AT 40^{O} C (AMP)"
1CX16+25 sqmm 7 7 1.71 2.12 1.20 1.91 1.38 7.0 13.6 128 72
3CX16+25 sqmm 7 7 1.71 2.12 1.20 1.91 1.38 7.0 17.3 250 64
1CX16+16+25 sqmm 7 7 7 1.71 1.71 2.12 1.20 1.20 1.91 1.91 1.38 7.0 15.2 190 72
3CX16+16+25 sqmm 7 7 7 1.71 1.71 2.12 1.20 1.20 1.91 1.91 1.38 7.0 19.0 315 64
3CX25+25 sqmm 7 7 2.12 2.12 1.20 1.20 1.38 7.0 19.2 336 84
1CX25+16+25 sqmm 7 7 7 2.12 1.71 2.12 1.20 1.20 1.20 1.91 1.38 7.0 15.9 220 99
3CX25+16+25 sqmm 7 7 7 2.12 1.71 2.12 1.20 1.20 1.20 1.91 1.38 7.0 21.1 401 84
3CX35+25 sqmm 7 7 2. 52 2.12 1.20 0.868 1.38 7.0 20.9 440 105
1CX35+16+25 sqmm 7 7 7 2. 52 1.71 2.12 1.20 1.20 0.868 1.91 1.38 7.0 16.5 254 120
3CX35+16+25 sqmm 7 7 7 2. 52 1.71 2.12 1.20 1.20 0.868 1.91 1.38 7.0 22.5 502 105
1CX50+35 sqmm 7 7 3. 02 2.52 1.50 0.641 0.986 9.8 18.9 275 150
3CX50+35 sqmm 7 7 3. 02 2.52 1.50 0.641 0.986 9.8 28.8 635 130
1CX50+16+35 sqmm 7 7 7 3. 02 1.71 2.52 1.50 1.20 0.641 1.91 0.986 9.8 19.8 337 150
3CX50+16+35 sqmm 7 7 7 3. 02 1.71 2.52 1.50 1.20 0.641 1.91 0.986 9.8 30.6 702 130
1CX70+50 sqmm 19 7 2. 17 3.02 1.50 0.443 0.689 14.0 21.2 380 168
3CX70+50 sqmm 19 7 2. 17 3.02 1.50 0.443 0.689 14.0 30.3 870 155
1CX70+16+50 sqmm 19 7 7 2. 17 1.71 3.02 1.50 1.20 0.443 1.91 0.689 14.0 22.6 442 168
3CX70+16+50 sqmm 19 7 7 2. 17 1.71 3.02 1.50 1.20 0.443 1.91 0.689 14.0 32.5 930 155
1CX95+70 sqmm 19 7 2. 52 3.57 1.50 0.320 0.492 19.7 25.5 514 188
3CX95+70 sqmm 19 7 2. 52 3.57 1.50 0.320 0.492 19.7 35.2 1162 172
1CX95+16+70 sqmm 19 7 7 2. 17 1.71 3.57 1.50 1.20 0.320 1.91 0.492 19.7 28.8 576 188
3CX95+16+70 sqmm 19 7 7 2. 17 1.71 3.57 1.50 1.20 0.320 1.91 0.492 19.7 37.8 1224 172
1CX120+70 sqmm 19 7 2. 84 3.57 1.50 0.253 0.492 19.7 27.3 592 202
3CX120+70 sqmm 19 7 2. 84 3.57 1.50 0.253 0.492 19.7 40.6 1390 195
1CX120+16+70 sqmm 19 7 7 2. 84 1.71 3.57 1.50 1.20 0.253 1.91 0.492 19.7 31.1 658 202
3CX120+16+70 sqmm 19 7 7 2. 84 1.71 3.57 1.50 1.20 0.253 1.91 0.492 19.7 43.0 1458 195
Technical Specification for 1.1 kV AB Cable for Insulated Messenger
Wire Diameter Thickness Of Max Dcresistance Of Min Breakling Approax Current Carrying
No. Of Strands (mm) Insulation (mm) 20^{O} C(Ohms/Km) Load Of Overall Approx Capacity
AB Cable Scritic Phase Street Light Messenger Phase Street Light Messenger Phase Street Light Messenger Phase Street Light Messenger "MESSENGE R (KN)" "DIAMETER (mm)" "WEIGHT (kg/km)" "AT 40^{O} C (AMP)"
1CX16+25 sqmm 7 7 1.71 2.12 1.20 1.20 1.91 1.38 7.0 15.8 187 72
3CX16+25 sqmm 7 7 1.71 2.12 1.20 1.91 1.38 7.0 22.6 380 64
3CX16+25 sqmm 7 7 7 1.71 1.71 2.12 1.20 1.20 1.20 1.91 1.91 1.38 7.0 18.3 282 72
1CX16+16+25 sqmm 7 7 7 1.71 1.71 2.12 1.20 1.20 1.91 1.91 1.38 7.0 19.0 315 64
1CX25+25 sqmm 7 7 2.12 2.12 1.20 1.20 1.20 1.38 7.0 16.8 220 99
3CX25+25 sqmm 7 7 2.12 2.12 1.20 1.20 1.20 1.38 7.0 26.8 480 84
1CX25+16+25 sqmm 7 7 7 2.12 1.71 2.12 1.20 1.20 1.20 1.20 1.91 1.38 7.0 19.7 316 99
1CX25+16+25 sqmm 7 7 7 2.12 1.71 2.12 1.20 1.20 1.20 1.20 1.91 1.38 7.0 28.3 576 84
1CX35+25 sqmm 7 7 2.52 2.12 1.20 1.20 0.868 1.38 7.0 17.4 260 120
1CX35+25 sqmm 7 7 2.52 2.12 1.20 1.20 0.868 1.38 7.0 26.6 600 105
1CX35+16+25 sqmm 7 7 7 2.52 1.71 2.12 1.20 1.20 1.20 1.20 1.91 1.38 7.0 20.2 355 120
1CX35+16+25 sqmm 7 7 7 2.52 1.71 2.12 1.20 1.20 1.20 1.20 1.91 1.38 7.0 30.5 695 105
1CX50+35 sqmm 7 7 3.02 2.52 1.50 1.20 0.641 0.986 9.8 22.9 358 150
3CX50+35 sqmm 7 7 3.02 2.52 1.50 1.20 0.641 0.986 9.8 34.8 827 130
1CX50+16+35 sqmm 7 7 7 3.02 1.71 2.52 1.50 1.20 1.20 0.641 1.91 0.986 9.8 23.4 456 150
3CX50+16+35 sqmm 7 7 7 3.02 1.71 2.52 1.50 1.20 1.20 0.641 1.91 0.986 9.8 36.8 922 130
1CX70+50 sqmm 19 7 2.17 3.02 1.50 1.30 0.443 0.689 23.0 34.8 478 168
3CX70+50 sqmm 19 7 2.17 3.02 1.50 1.30 0.443 0.689 23.0 36.3 1080 155
1CX70+16+50 sqmm 19 7 7 2.17 1.71 3.02 1.50 1.20 1.30 0.443 1.91 0.689 23.0 26.4 575 168
1CX95+70 sqmm 19 7 2.17 1.71 3.02 1.50 1.20 1.30 0.443 1.91 0.689 23.0 26.4 575 168
1CX95+16+70 sqmm 19 7 7 2. 17 1.71 3.57 1.50 1.20 0.320 1.91 0.492 19.7 28.8 576 188
3CX95+16+70 sqmm 19 7 7 2. 17 1.71 3.57 1.50 1.20 0.320 1.91 0.492 19.7 37.8 1224 172
1CX120+70 sqmm 19 7 2. 84 3.57 1.50 0.253 0.492 19.7 27.3 592 202
3CX120+70 sqmm 19 7 2. 84 3.57 1.50 0.253 0.492 19.7 40.6 1390 195
1CX120+16+70 sqmm 19 7 7 2. 84 1.71 3.57 1.50 1.20 0.253 1.91 0.492 19.7 31.1 658 202
3CX120+16+70 sqmm 19 7 7 2. 84 1.71 3.57 1.50 1.20 0.253 1.91 0.492 19.7 43.0 1458 195
