Our Products

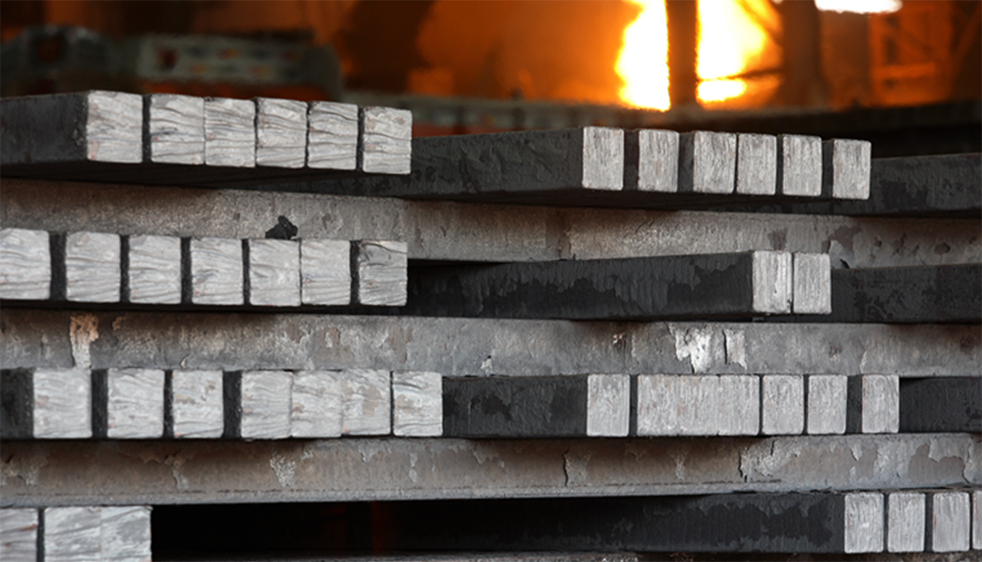

Billets
We produces a wide range of continuously casted Billets in its Integrated Steel Plant. The state-of- art technology ensures international quality standards and ensures smooth and defect-free casting of billets. M.S. Billets are used for rolling of TMT Re-Bars of Fe 415/415D, Fe 500/500D, Fe 550/550D & Fe 600 Grade. The following are the specification of Billets available.
The following are the Special features of the Billets:
Excellent Surface Finish: The Billets produced are free from any surface. Magnetic particle test in order to identify any crack on the surface is done on a regular basis.
Dimensional Tolerance: Billets produced strictly in accordance to IS 2830 for dimensional tolerance.
No Internal Defects: The Billets produced are free from any internal defects. Defects such as piping blowholes and pinholes are identified and segregated by Sulphur Print Test.
Physical Properties
| DESCRIPTION | AS PER IS 2830 | BILLETS |
|---|---|---|
| Bend (max.) | 5 mm per meter | >= 5 mm per meter |
| Camber (max.) | 3mm per meter | >= 3 mm per meter |
| Length | 3 mt to 13 mt | 3 mt to 9 mt |
Chemical Analysis as per BIS 2830 : 2012
| DESIGNATION | %CARBON | %MANGANESE |
|---|---|---|
| C15 | 0.12-0.18 + | 0.30-0.60 |
| C18 | 0.15-0.21 | 0.30-0.60 |
| C20 | 0.17-0.23 | 0.30-0.60 |
| C15 MMn | 0.12-0.18 | 0.60-1.00 |
| C18 MMn | 0.15-0.21 | 0.60-1.00 |
| C20 MMn | 0.17-0.23 | 0.60-1.00 |
| C15 HMn | 0.12-0.18 | 1.00-1.80 |
| C18 HMn | 0.15-0.21 | 1.00-1.80 |
| C20 HMn | 0.17-0.23 | 1.00-1.80 |
Chemical Analysis
| GRADE | SULPHUR | PHOSPHOROUS | CARBON EQUIVALENT (CE)1 |
|---|---|---|---|
| Max | Max | Max | |
| A | 0.050 | 0.050 | 0.42 |
| B | 0.045 | 0.045 | 0.41 |
| C | 0.040 | 0.040 | 0.39 |
We introduce ourselves as M/S SHRI HARE KRISHNA SPONGE IRON LTD, a leading integrated steel plant situated approximately 22 km from Raipur.
